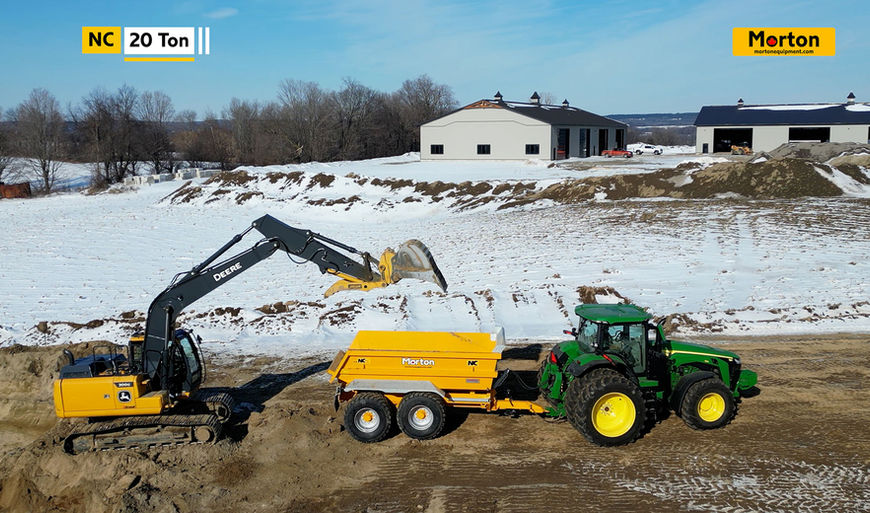

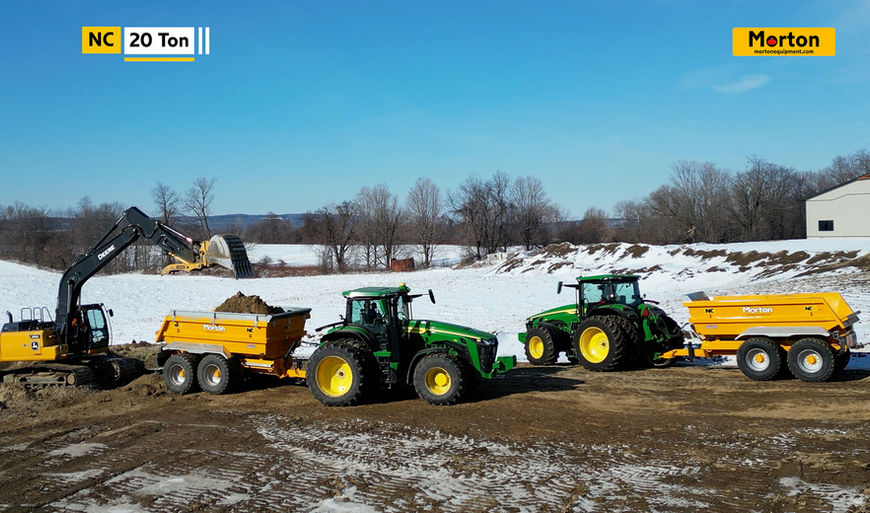

Morton Equipment NC 20 Ton Dump Trailer

NC 20 Ton Dump Trailer

​

• Ideal for agriculture, construction, demo and land clearing

• 20 ton capacity

• Genuine hardox 450 bin

• 710 BKT flotation with 560 BKT option

• Hydraulic brakes on high speed axles

• 73 degree tipping angle

• Downwards auto rear door

• Sprung draw bar

• 360 swivel pintle ring

• Independent leaf spring suspension

• Rear axle stabilizer

• Twin 3 stage chrome tipping cylinders

• Reinforced undercarriage

• Standard safety arm

• Removable galvanized stone guard with option for galvanized ext sides

• Tail door has option to stay down ideal for land clearing

• High quality paint

• LED signal and brake lights

​​

• Unladen Weight ... 12672 lbs

• Cubic Capacity ... 13 yds³

• Loading Capacity ... 44000 lbs

• Max Hitch Load ... 6600 lbs

• Overall Length ... 19’6”

• Overall Width ... 8’9”

• Overall Height ... 7’10”

• Bin Height ... 3’4”

• Bin Length ... 15’

• Bin Width at Top ... 7’9”

• Bin Width at Bottom ... 6’7”

• Side Thickness ... 5mm

• Floor Thickness ... 6mm

• Running Gear ... Springs, 10 stud high speed hub

• Tires ... 560x60x22.5

• Brakes ... (4) hyd

• Tipping Cylinders ... 2x28lts

​

710 BKT Flotation $56.000 CAD
560 BKT Flotation $51.000 CAD

​
